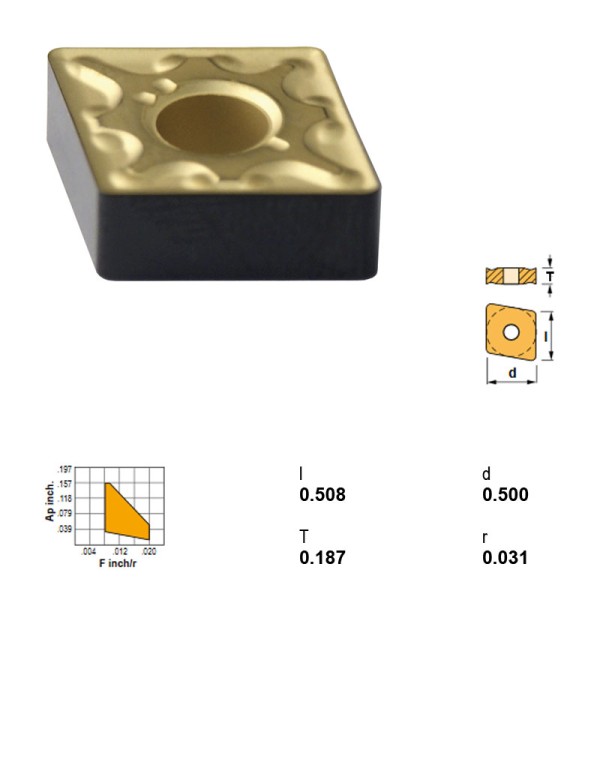

CNMG432MC-TN15
Box of 10 units. 80° FC - rhombic negative turning insert
Stock:
Description
Geometry -MC
MC chipbreakers provide a positive rake angle with land for high edge strength in medium duty applications on a wide range of materials. Recommended for general purpose use on all types of steel.
Main application area:
Cutting depth (Ap): 1,0 - 3,5 mm
Feed (f): 0,15 - 0,35 mm
| Measurement system | Inch tools |
|---|---|
| Material group | Steel |
| Application | Turning |
| Machining type | Finishing Medium |
| Insert shape | C - Rhombic 80° |
| Clearance angle | Negative |
| Use clasification | Continuous Slight interruption |
| Inscribed circle | 12.7 |
| Insert corner | 0.8 |
| Grade | TN15 |
| Insert thickness (mm) | 4.76 |
