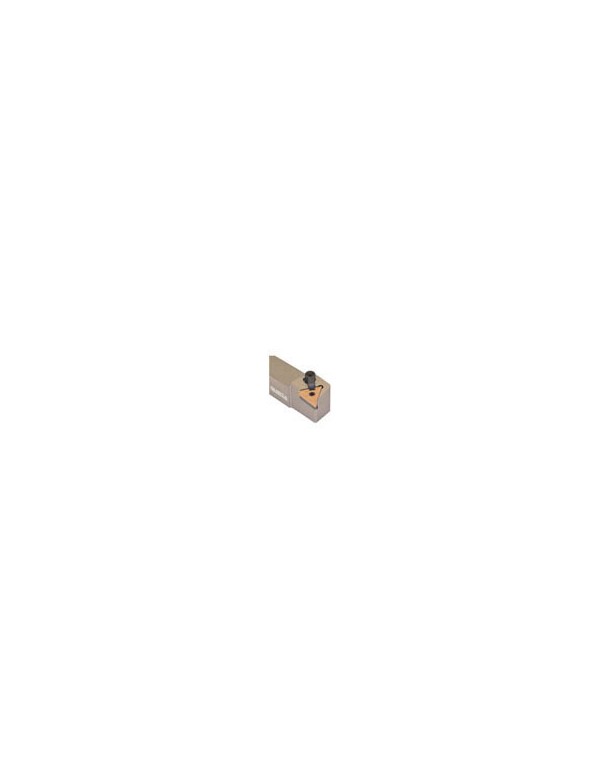

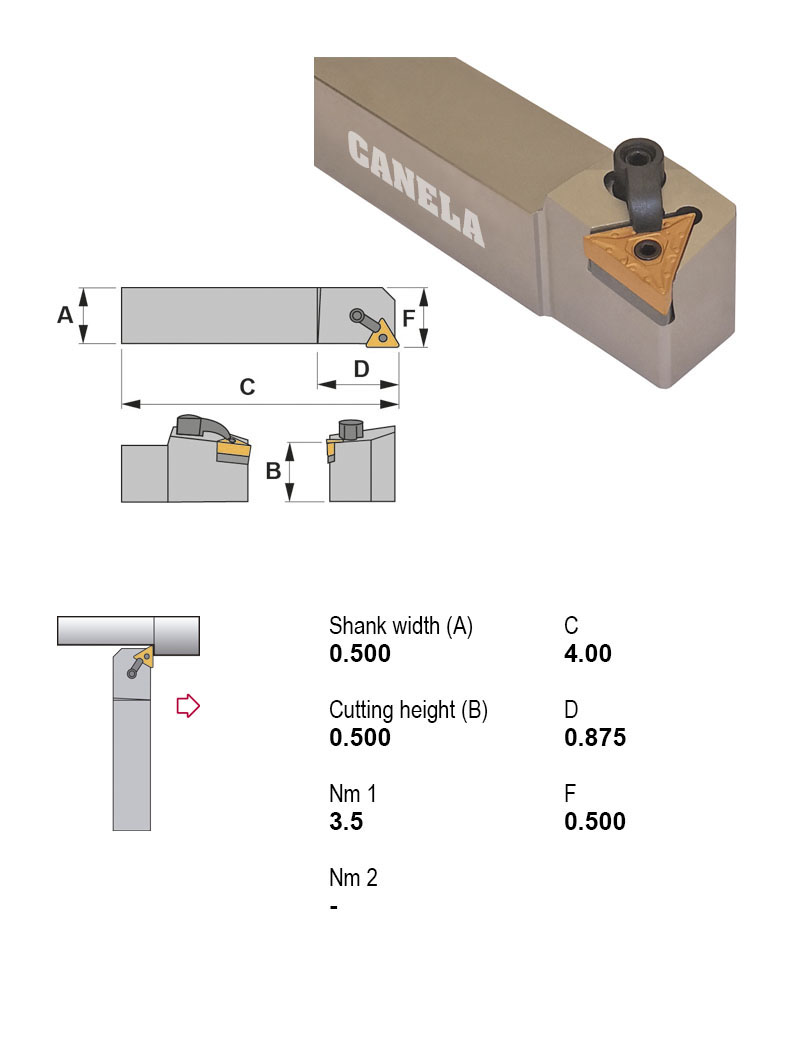

Reference MTANL082A
External turning 0.500x0.500" 90° TNM..22..

Downloads

You must log in to download files

Quantity

Add to wishlist

Stock:

Description

Profiling toolholder equipped with negative double-sided inserts with strong cutting edges.
Measurement system Inch tools
Clamping method of insert Double lock
Category External turning
Application Turning
Connection style Toolholder
Back End size 0.500
Holder Style 90°
Insert shape T - Triangular 60°
Clearance angle Negative
Hand Left
Coolant No
