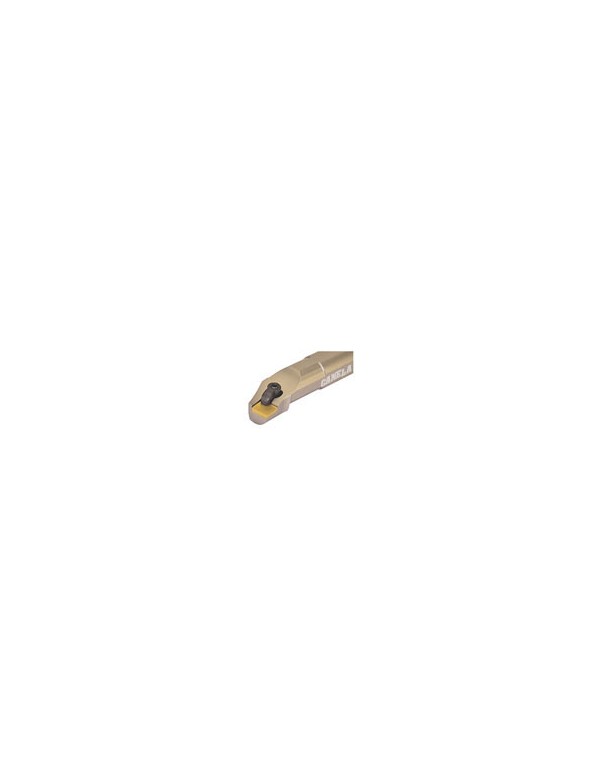

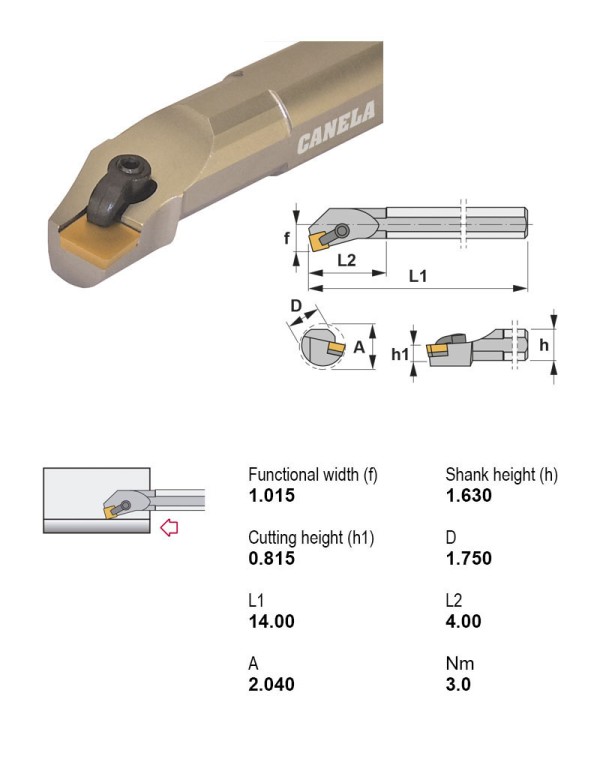

Reference S28U-CSKPR4
Internal turning Ø 1.750" 75° SP..42..

Downloads

You must log in to download files

Quantity

Add to wishlist

Stock:

Description

Boring bar for internal turning applications equipped with square positive inserts.
Measurement system Inch tools
Clamping method of insert Top clamp
Category Internal turning
Application Internal turning
Connection style Boring bars
Back End diameter 1.750
Holder Style 75°
Insert shape S - Square 90°
Clearance angle Positive
Hand Right
Coolant No
